On a recent Audi in the shop, Dimitri Schleif, Berg Performance Audi Master Technician, checked the camshaft adaptation value and found 9.14 degrees of deviation, a long way from where we want to see it and a good indication that the mechanical relationship between the crankshaft and camshaft had changed considerably. Zero degrees represents the theoretical ideal, but on a chain-driven engine, expecting a perfect 0.00° in the real world isn't particularly realistic. Chains have tolerances, tensioners have travel, components bed in and wear, and even a healthy engine will generally show some amount of adaptation.
While our example happens to be an Audi, none of this is exclusively an Audi story. The same basic principles apply across many Volkswagen Auto Group (VAG) engines found in Audi, Volkswagen, Porsche and other VAG vehicles. The engines, timing layouts and acceptable measurements vary considerably, but the underlying mechanics don't: chains wear at their pins and joints, guides lose material, tensioners extend farther to control the resulting slack, and the relationship between crankshaft and camshaft gradually changes. Oil quality, oil level, maintenance history, operating conditions and the particular generation of timing hardware all influence how quickly that happens.
So what should an Audi or VAG owner actually be looking for? What does a phase-position reading tell us, when does a cold-start rattle become worth investigating, and at what point does “keep an eye on it” become “start planning the repair”? Using the recent 9.14º reading as an example of how far that relationship can move, we're going to look at what the timing chain actually does, why these systems wear, what warning signs they give us, and what it takes to put the mechanical timing back where it belongs.
Everything Depends on the Timing

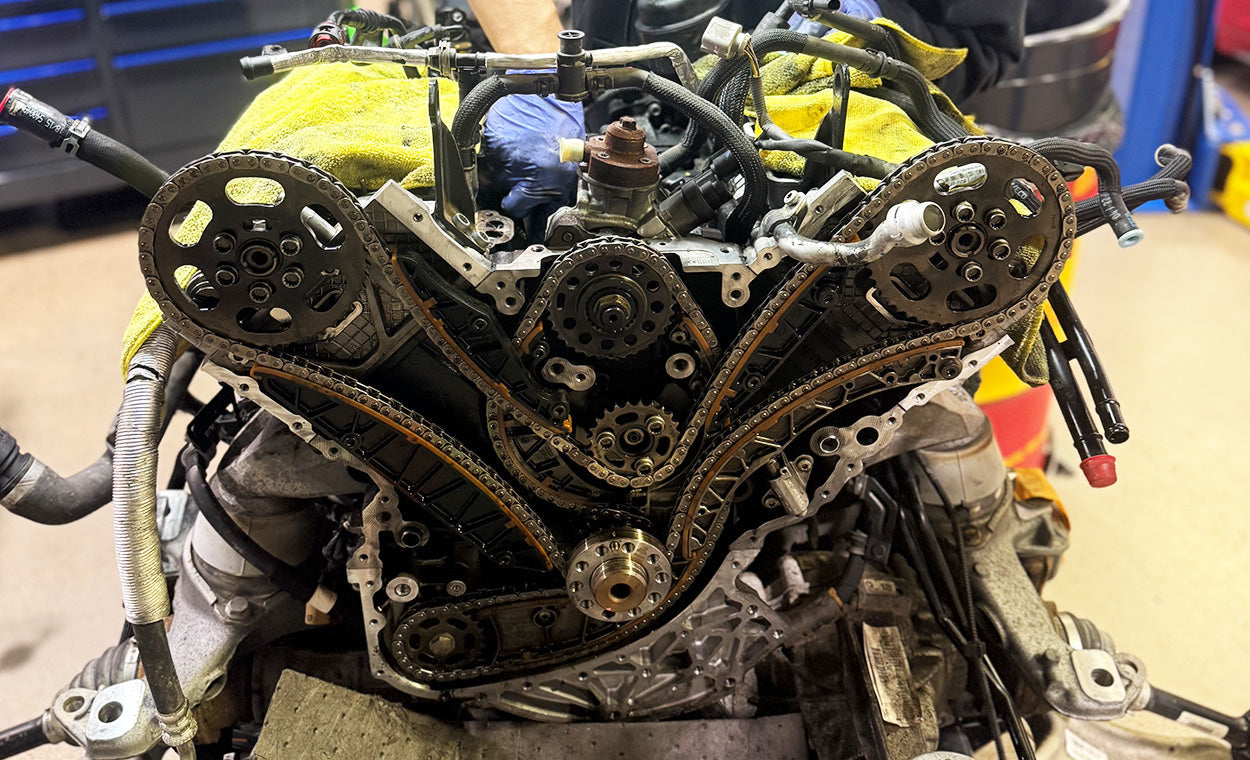

Strip away variable valve timing, direct injection, turbochargers, computers and the alphabet soup of modern VAG engine technology and the basic job of the timing chain is wonderfully mechanical: it keeps the crankshaft and camshafts synchronized. The crankshaft determines where the pistons are in their cylinders. The camshafts determine when the intake and exhaust valves open and close. Those events have to remain precisely coordinated from idle to several thousand rpm under load. At 6,000 rpm, the crankshaft is making 100 revolutions every second. There isn't much room in that arrangement for everyone to simply agree to meet somewhere in the middle.
Modern Audi and VAG engines complicate matters in a clever way with variable camshaft timing. Depending on the engine, the ECU can advance or retard one or more camshafts to alter valve timing for power, torque, economy, drivability and emissions. But that adjustment assumes the underlying mechanical timing is fundamentally correct. The ECU can command a camshaft adjuster; it cannot electronically shorten a worn chain, replace a worn guide or put material back onto a chain pin. Once the base mechanical relationship starts changing, the ECU is adapting around mechanical wear rather than making that wear disappear.
A Timing Chain Doesn't Really "Stretch"
We all call it timing-chain stretch because “cumulative wear of several dozen articulating chain joints” doesn't exactly roll off the tongue. But the distinction is important. The chain isn't stretching in the way a rubber band stretches, and the individual steel side plates aren't necessarily becoming appreciably longer. The effective increase in chain length comes primarily from wear at the chain's pins, bushings, rollers, and mating surfaces. Each joint articulates every time it passes around a sprocket. Multiply that by thousands of engine revolutions, then hours, then years, then 80,000 or 120,000 miles, and those microscopic clearances start accumulating.
One worn joint by itself means practically nothing. Add a tiny amount of clearance to every joint in the chain and suddenly the overall relationship changes. The effective pitch of the chain increases and, viewed across its entire length, the chain has become longer. This is why comparing a heavily used chain directly against a new one can be so revealing. You aren't necessarily looking for one dramatically damaged link. You're looking at the accumulated effect of wear repeated over and over again. It's death by a thousandths of an inch, German-engineering edition.
And the chain is only part of the story. VAG timing systems use guides to control the chain and tensioners to remove slack, while sprockets, camshaft adjusters, oil-control systems, and other components vary depending on the particular engine. Wear anywhere in that system can influence timing accuracy. This is why “it needs a chain” is often an oversimplification. When we service a worn Audi timing system, we're interested in the condition of the system, not merely the longest piece of metal inside it.
The Tensioner Is Constantly Trying to Hide the Wear
If the timing chain were simply looped around a few sprockets and left loose, it wouldn't survive very long. The timing system needs controlled chain tension, so Audi uses guides and tensioners to keep the chain properly loaded as the engine operates. As normal wear increases the effective length of the chain, the tensioner extends farther to take up that additional slack. For a considerable portion of the timing system's life, this arrangement works exactly as intended. Wear occurs, the tensioner compensates, the engine keeps running, and the person behind the wheel remains blissfully unaware of the small mechanical drama occurring a few feet in front of the radio.
The trouble is that a tensioner doesn't have infinite travel, and a guide doesn't have infinite material. As the system ages, the tensioner may have to extend farther to maintain control. Guides can wear. The chain itself continues accumulating clearance. Depending on the Audi engine family, the tensioner design itself may also be an important consideration. Certain Audi/VW engines and earlier revisions of timing hardware have well-documented tensioner concerns, while later versions received updated components. That makes identifying the specific engine and timing-system generation important when we're diagnosing an individual car.
Oil Is Part of the Timing System Whether You Think About It or Not
Timing chains have one advantage over timing belts that is also something of a liability: they live inside the engine. They're continuously lubricated by engine oil, and hydraulic elements of the timing and camshaft-adjustment systems depend on the engine's lubrication system to function correctly. That means oil isn't merely something keeping the crankshaft bearings slippery. It is an active participant in the health of the timing system.
This is why oil-change history matters so much when we're looking at a higher-mileage Audi. Oil spends its life absorbing heat, combustion byproducts, fuel contamination, moisture, and microscopic debris while its additive package gradually degrades. The correct VW/Audi oil specification matters, oil level matters, and the interval between services matters. Audi engines that consume oil add another variable because a car repeatedly operated low on oil isn't giving its timing components the easiest possible retirement plan. None of this means that changing your oil every few thousand miles makes a timing chain immortal. It doesn't. It simply means that clean, correct oil at the proper level gives a heavily loaded mechanical system a much better chance of reaching old age gracefully.
This also explains why mileage alone is a poor predictor of chain condition. Two identical Audis can arrive at 100,000 miles with dramatically different timing systems. One may have received religious maintenance with the correct oil and spent its life accumulating long highway miles. Another may have survived on extended oil intervals, frequent low-oil warnings, short trips, cold starts, and whatever bottle was on sale at the parts store. The odometers say they're twins. Mechanically, they may barely be cousins.
The Cold-Start Rattle Is Trying to Tell You Something
One of the better-known symptoms of an aging Audi timing system is a metallic rattle immediately after startup, particularly after the car has been sitting. There is a logical mechanical reason for it. When the engine shuts down, oil pressure disappears. At the next startup, pressure has to build and the timing system has to establish proper chain control immediately. If there is excessive slack, a worn guide, a tensioner problem, or some combination of the three, those first moments can reveal a problem that becomes much less obvious once oil pressure is established.
This doesn't mean every Audi that ticks, clatters, or makes an unpleasant noise for half a second needs its engine removed and timing chains replaced. Direct-injected Audi engines are not known for sounding like sewing machines full of velvet. Injectors click, high-pressure fuel pumps make noise, and various mechanical systems announce their presence. Diagnosis matters. But a new or increasingly pronounced metallic chain rattle at cold startup should not simply be dismissed, particularly on an older or higher-mileage engine. Combine that noise with timing-related fault codes or unfavorable adaptation data and the picture starts becoming considerably clearer.
Your VAG Engine Can Often Tell Us How Far the Timing Has Moved
Modern engine management gives us something mechanics of an earlier era would have loved to have: the ability to see evidence of mechanical timing wear without immediately opening the engine. On many VAG engines, diagnostic equipment allows us to examine camshaft adaptation or phase-position values. The exact terminology, measuring block and interpretation vary by engine family and generation, but the basic principle is the same. The ECU knows the relationship it expects between crankshaft and camshaft position, and the adaptation data gives us another piece of evidence about how that relationship is changing.
The measurement we're discussing is expressed in degrees, but zero needs some explanation. 0.00° is the theoretical ideal, not a number we expect every healthy chain-driven engine to produce. A chain drive has mechanical tolerances throughout the chain, sprockets, guides, tensioner and adjusters, and all of those components have some amount of variation even when they're perfectly serviceable. A gear-driven system can theoretically get closer to absolute zero, but even there, manufacturing tolerances and operating conditions make perfection an ambitious target. What matters to us isn't achieving a magical 0.00°. It's whether the reading is reasonable for that engine and, particularly, whether it is moving progressively farther away from its established baseline.
As a practical shop guideline on the VAG engines where this measurement is applicable, roughly 0° to ±3° is generally comfortable territory, not because zero is expected, but because some deviation is normal. Around -4°, we start having the timing-chain conversation. Around -4.5°, we start talking about planning and budgeting for the service. As the reading approaches -5°, our comfort level drops considerably and we want a closer look at the timing system. These aren't universal VAG factory replacement specifications, and different engines have different designs and diagnostic procedures. The number is one piece of evidence, not a death sentence handed down by a scan tool.
One Reading Doesn’t Tell the Whole Story
A single phase-position measurement gives us a snapshot. Several measurements over time give us a movie, and the movie is usually much more useful. An engine that has lived happily around -1.5° for years tells a different story than one that measured -1.5°, then -2.5°, then -3.5° over successive services. The second engine is showing us movement, and movement gives us something useful to follow.
Timing-chain wear also isn't necessarily linear. Engines don't all accumulate wear at the same rate, and the phase-position value shouldn't be treated like the countdown clock on a bomb. A car at -3.5° isn't guaranteed to reach -4.5° in another 10,000 miles, just as one sitting comfortably at -2° isn't guaranteed to remain there forever. Repeated measurements establish a baseline specific to that engine. For someone planning to keep a VAG vehicle long-term, recording those values during routine service can turn an unexpected repair into something that can be watched, planned and handled on your terms.
What Happens When the Numbers Keep Going?
For quite a while, possibly nothing dramatic. That's what makes timing-chain wear so easy to ignore. An can start, idle, drive, make full power, and display no obvious warning to the driver while its timing system is steadily accumulating wear. The ECU is very good at managing an engine that isn't quite where it used to be. Unfortunately, there is a difference between an engine managing wear and the mechanical parts suddenly becoming healthy again.
Eventually, a timing system can reach the point where the tensioner can no longer adequately control the additional slack, a guide deteriorates or breaks, an adjuster develops a problem, or the chain is able to move far enough to jump timing. At that moment the situation changes rather abruptly. The crankshaft and camshafts are no longer synchronized as intended, and on an interference engine the pistons and valves have very strong opinions about occupying the same physical space. The piston is coming up because the crankshaft told it to. The valve is still open because the camshaft told it to. Neither component has been informed that the timing chain has changed the schedule.
The resulting introduction can bend valves, damage the cylinder head, mark or damage pistons, and turn what would have been an expensive but predictable timing-system service into a considerably more expensive engine repair. That's the distinction we try to make when talking to Audi owners about preventive timing work. We're not interested in replacing perfectly good parts because a car crossed some magical odometer threshold. We're interested in identifying a deteriorating timing system while the engine is still healthy enough for the repair to remain a timing-chain job.
So When Should an VAG Timing Chain Be Replaced?
There are simply too many engines, generations, timing-system designs and hardware revisions across Audi and the larger VAG family for that statement to mean much. The correct approach is to identify the engine, understand its known timing-system characteristics, inspect its maintenance history, listen to it cold, scan it for relevant faults, examine the applicable camshaft adaptation data, and physically inspect timing components when the engine design allows us to do so.
This is also why we don't condemn an Audi solely because someone plugged in a scan tool and saw -4.1°. The number is evidence, not a verdict. Conversely, we don't dismiss an engine simply because there isn't a check-engine light. A higher-mileage Audi with increasing phase deviation, a persistent cold-start rattle, questionable maintenance history, and a timing system known to have accumulated significant wear is giving us several pieces of evidence pointing in the same direction. Good diagnosis is putting those pieces together.
Maintenance Is Cheaper Than Mechanical Optimism
There is no additive that reverses timing-chain wear, no oil that shrinks an elongated chain, and no reset button that puts material back onto worn guides. The useful work happens much earlier. Use the correct VW/Audi-approved oil for the specific engine. Keep the oil level where it belongs. Address abnormal oil consumption rather than treating the low-oil warning as a recurring calendar notification. Use sensible service intervals for the age, mileage, and use of the vehicle. Pay attention when the engine begins making a noise it didn't make six months ago. And as mileage accumulates, use the diagnostic information Audi built into the car rather than waiting for a warning light to make the decision for you.
Timing-chain wear doesn't need to be mysterious. On many VAG engines, we can listen to the engine, inspect the hardware, interrogate the ECU, establish a baseline and watch the mechanical timing change over time. We aren't chasing a perfect 0.00°. We're looking for a healthy, stable relationship and watching for meaningful movement away from it. On applicable engines, around -4° we start the conversation. Around -4.5° we start talking seriously about planning for the repair. Around -5°, we're no longer terribly interested in seeing how brave everyone feels. Those numbers aren't universal laws, but used intelligently, they're valuable clues.
The goal isn't to replace an Audi or VAG timing chain one mile before it would have failed. Nobody can predict that. The goal is to recognize the signs of a worn timing system early, understand what the engine is telling us, and make the repair while it's still a timing-chain job. At Berg Performance, that's exactly why we look at the whole picture: phase-position values, cold-start behavior, maintenance history, fault data, and the condition of the timing system itself. Catch it early enough, and you'll never have to find out exactly how long that chain would have lasted.
